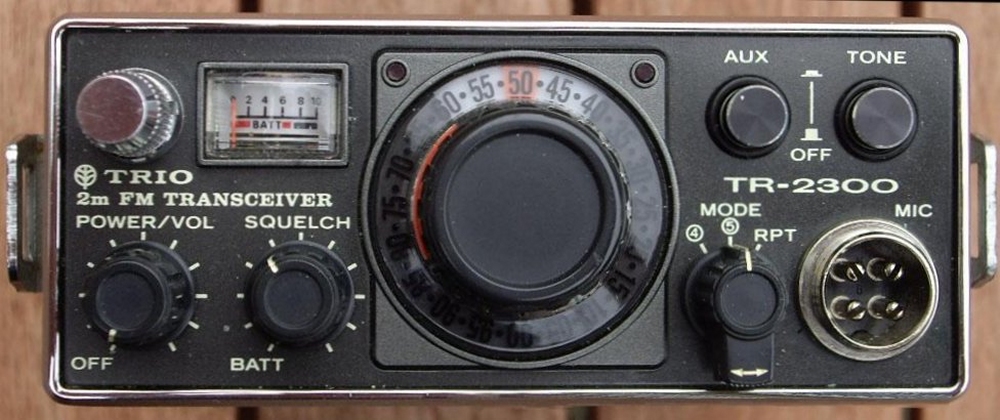

Kenwood TR-2300
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz (25 KHz steps) |
| Modes: |
FM |
| RF Power output: |
1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
9.6-16 VDC |
| Current Drain: |
RX: 45 mA
TX: 450 mA |
| Aerial Input: |
50 ohms, SO-239 or telescopic whip |
| Dimensions (W*H*D): |
122*51*175 mm |
| Weight: |
1.2 Kg (10*NiCd included) |
| Manufactured: |
Japan, 1979-19xx |
| Other: |
Illuminated dial |
| Related Documents: |
Operating Manual (4.61 MB)
Service Manual (5.79 MB) |
 |
